Redcrab Case Product Series

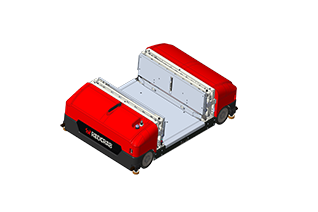

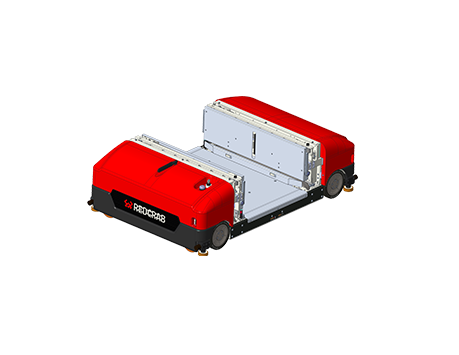

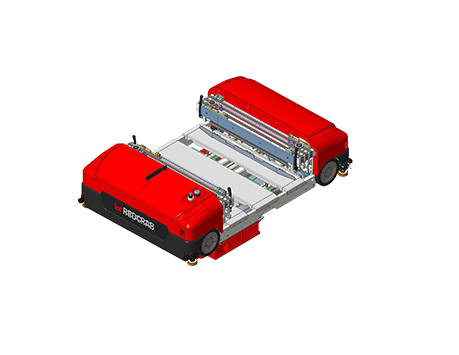

930-400 Type Auto 2D Shuttle
Product Details
Equipped with synchronous belt fork
Light welght
High-density storage
Product Parameter
| Parameter Name | Unit | Data |
| Dimensions: Length x Width x Height | mm | 1267x978x373 |
| Rated load | kg | 50 |
| Max. Speed | m/s | 5 |
| Max. Acceleration | m/s² | 2 |
| Maximum Lateral Speed (No-Load/Loaded) | m/s | 1/0.5 |
| Max. Acceleration of Cargo Fork (No-Load/Loaded) | m/s² | 2/0.5 |
| Length of Container | mm | 300~ 800 |
| Width of container | mm | 400 |
| Min Height of Container | mm | 100 |
| Max. Stroke of Cargo Fork | mm | 1400 |
| Positioning Accuracy | mm | +2 |
| Power Supply | / | Super Lithium Capacitor Battery |
930-400 Type Auto 2D Shuttle
